HR 6401

type ST · family 1TS · 22.1 kV maximum anode voltage · 90° deflection · 2 windings · 365 g

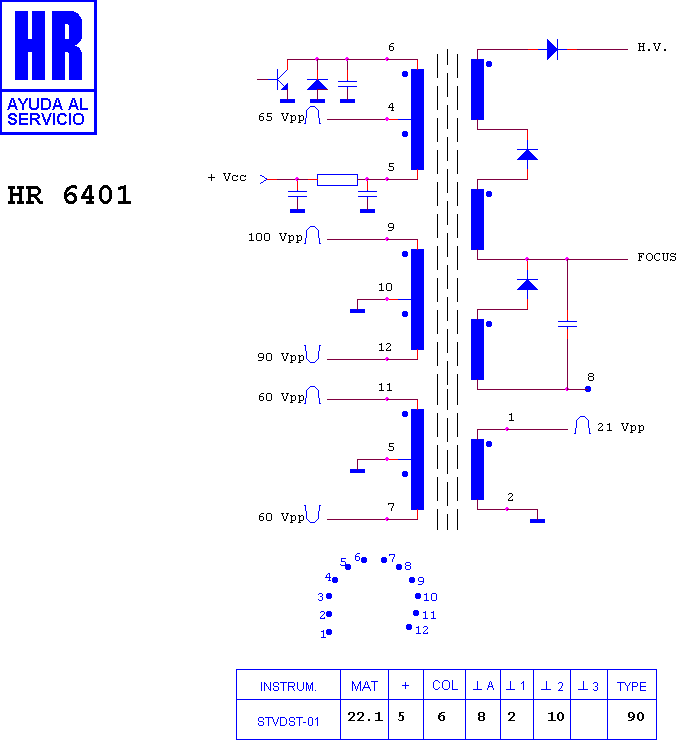

Schematic diagram for HR 6401
schematic

Manufacturer equivalents (3)

1-439-332-31 · 725 552 4 · 959 896 2

Fitted to (2)

SONY KV 2720 EC · SONY KV 2752 UB
