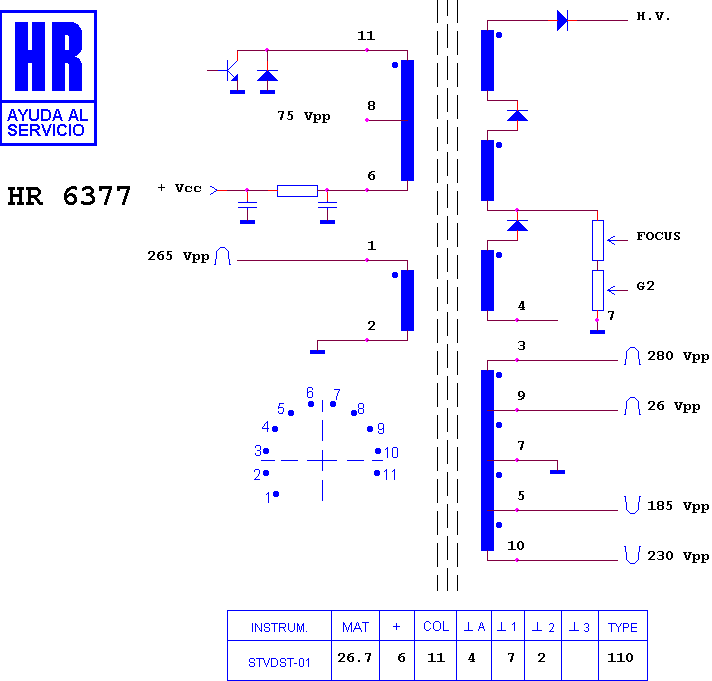

HR 6377

type ST · family 1AP2 · 26.7 kV maximum anode voltage · 110° deflection · 324 g

Manufacturer equivalents (13)

002 651 0325 · 26510325 · F 0011 CE · F 0011 ME · F 0011 PE · F 0011 PE-D · F 0011 PE-M · F 1374 CE · F 1374 CE-D · RTRNF0011CEZZ · RTRNF0011PED · RTRNF0011PEZZ · RTRNF1374CEZZ

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

SHARP 27 FS 200
