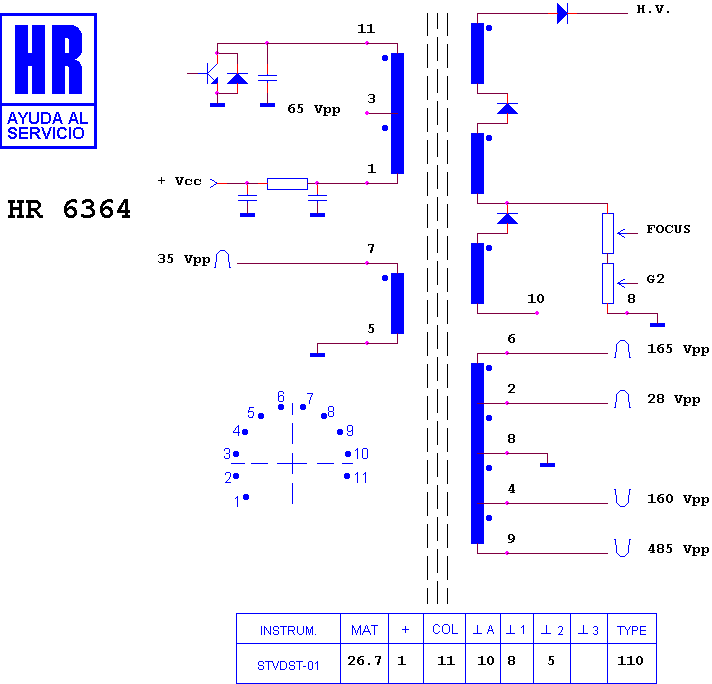

HR 6364

type ST · family 1AP1 · 26.7 kV maximum anode voltage · 110° deflection · 362 g

Manufacturer equivalents (7)

4232 · F 1232 CE · FAT 30210 · KT 9001 · RTRNF1232CEZZ · TVC/98 · Z 4034

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (14)

SHARP C 14 · SHARP C 1402 · SHARP C 1402 G · SHARP C 1404 · SHARP C 1404 A · SHARP C 1417 A · SHARP C 1425 · SHARP C 1425 A · SHARP C 1460 · SHARP C 1460 B · SHARP C 1480 · SHARP C 1480 A · SHARP C 1484 · SHARP C 1484 A
