HR 6324

type ST · family 1JS · 26.1 kV maximum anode voltage · 110° deflection · 4 windings · 376 g

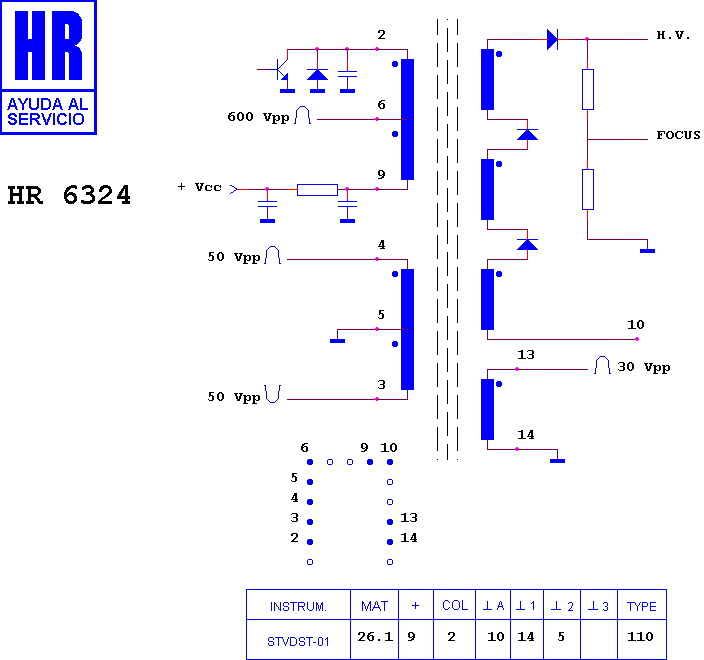

Schematic diagram for HR 6324
schematic

Manufacturer equivalents (6)

003050104 · 8 627 105 494 · 8 667 210 404 · FAT3585 · RO 200 · TR 227

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6129
