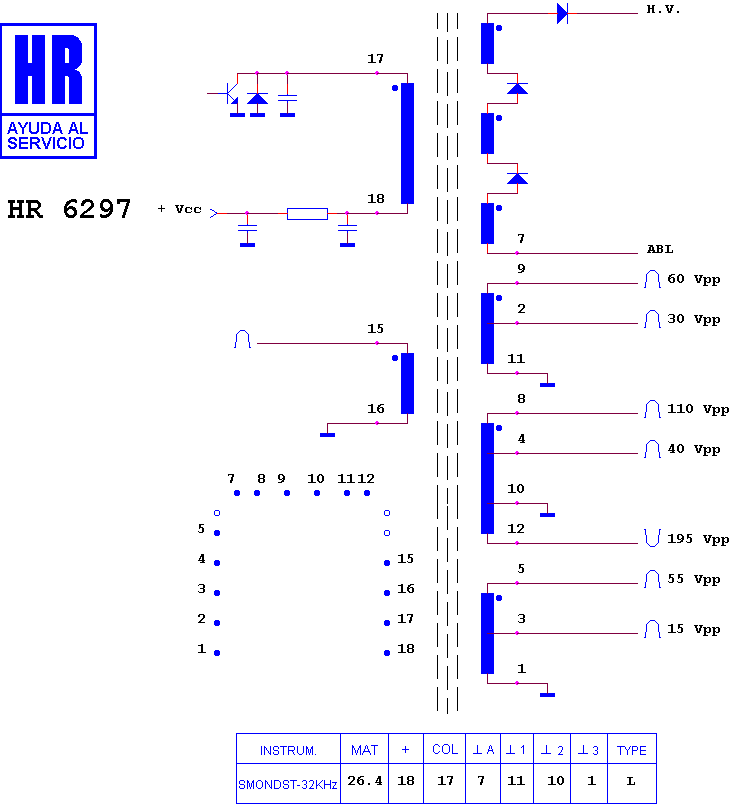

HR 6297

type SM · family 1ES · 26.4 kV maximum anode voltage · L° deflection · 600 g

Manufacturer equivalents (9)

3122 138 35840 · 35840 · 35841 · 35842 · 35843 · 35844 · 35845 · AT 2076/60 · FAT 3718

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Fitted to (11)

DIGITAL 3119 208 90143 · DIGITAL MONITOR · DIGITAL MONITOR VR 290 DA · DIGITAL VR 290 DA · FIMI 3119 208 90143 · FIMI MONITOR · FIMI MONITOR VR 290 DA · FIMI VR 290 DA · PHILIPS 35840 · PHILIPS 35841 · PHILIPS 35842
