HR 6294

type ST · family 1BP1 · 18.9 kV maximum anode voltage · 110° deflection · 3 windings · 425 g

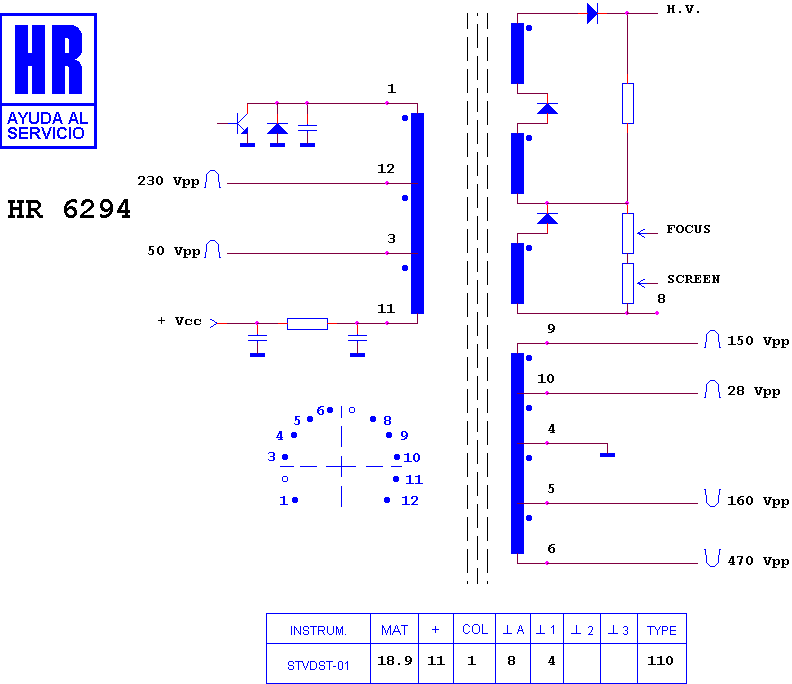

Schematic diagram for HR 6294
schematic

Manufacturer equivalents (8)

003331120 · D 337/37 · D 342/37 · FAT3892 · KN3892 · ME/6383-00 · RO 107 · TR 107

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6063

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

CONTEC MV 6772 · NEC 14 T 412 SK
