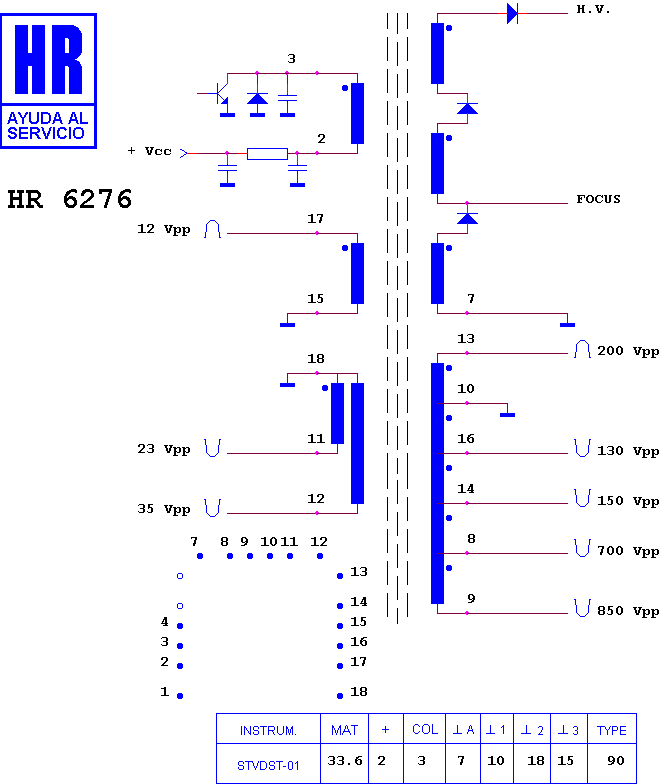

HR 6276

type ST · family 1PS · 33.6 kV maximum anode voltage · 90° deflection · 6 windings · 621 g

Manufacturer equivalents (2)

00 D-4-198-001 · AT 2076/71 T

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
