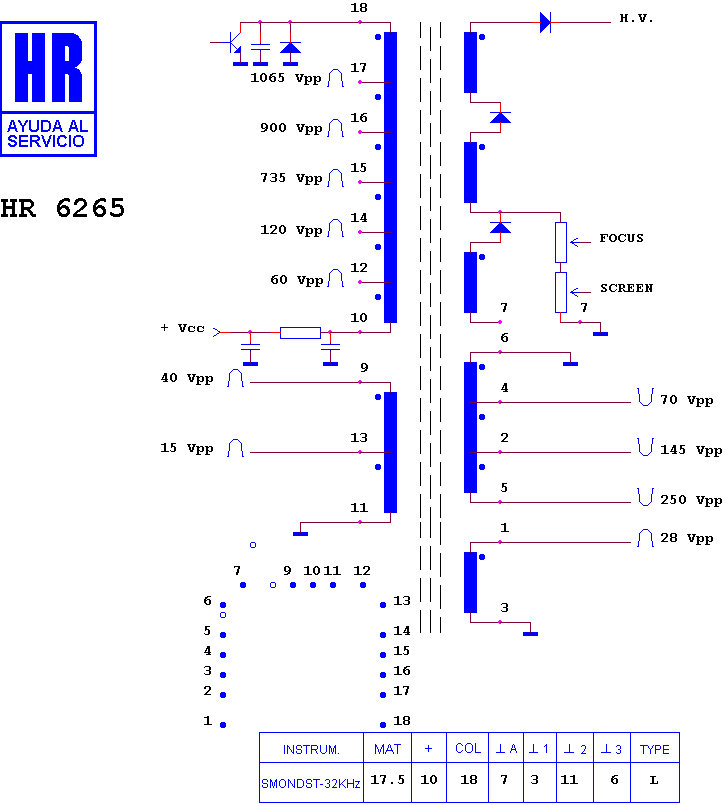

HR 6265

type SM · family 1IP · 17.5 kV maximum anode voltage · L° deflection · 4 windings · 436 g

Manufacturer equivalents (8)

0036010203 · 061690 · 3122 138 37392 · 3122 138 37393 · 3122 138 37394 · 3122 138 37395 · AT 2077/32 · MAT 33213

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16506 — EHT anode lead

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (7)

DECCA COLOUR BRIDGE MASTER 2 · DECCA COLOUR MONITOR · HELLIGE MONITOR · HELLIGE SMU 612 · HELLIGE VICOM SMU 612 · SIEMENS MONITOR · SIEMENS SUNUMERIK 12"
