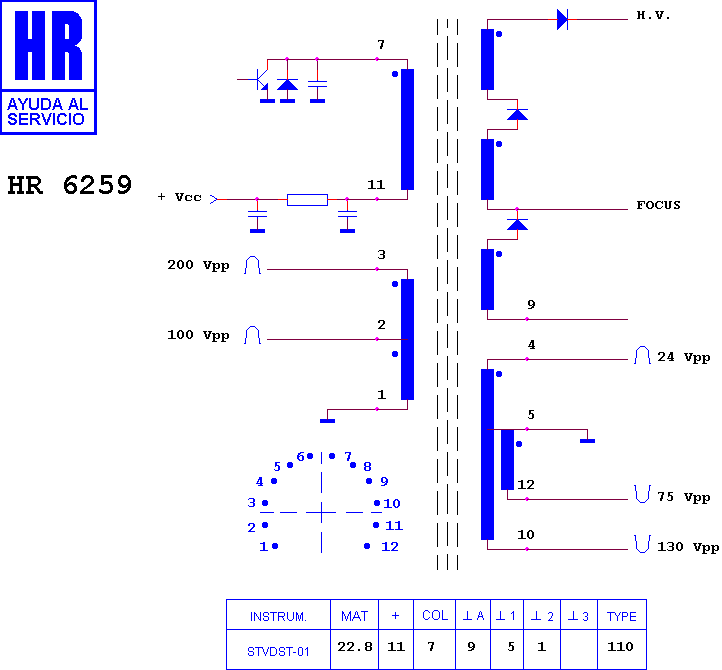

HR 6259

type ST · family 1BS1 · 22.8 kV maximum anode voltage · 110° deflection · 410 g

Manufacturer equivalents (2)

478014.00 · 8014094

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16529 — Focus control

Fitted to (7)

BANG & OLUFSEN - B&O 3260 MST · BANG & OLUFSEN - B&O 3500 · BANG & OLUFSEN - B&O 5500 · BANG & OLUFSEN - B&O BEOVISION LX 5500 · BANG & OLUFSEN - B&O BEOVISION MX 3500 · BANG & OLUFSEN - B&O BEOVISION MX 5500 · BANG & OLUFSEN - B&O CHASIS 39XX
