HR 6247

type ST · family 1BP1 · 21.7 kV maximum anode voltage · 90° deflection · 4 windings · 425 g

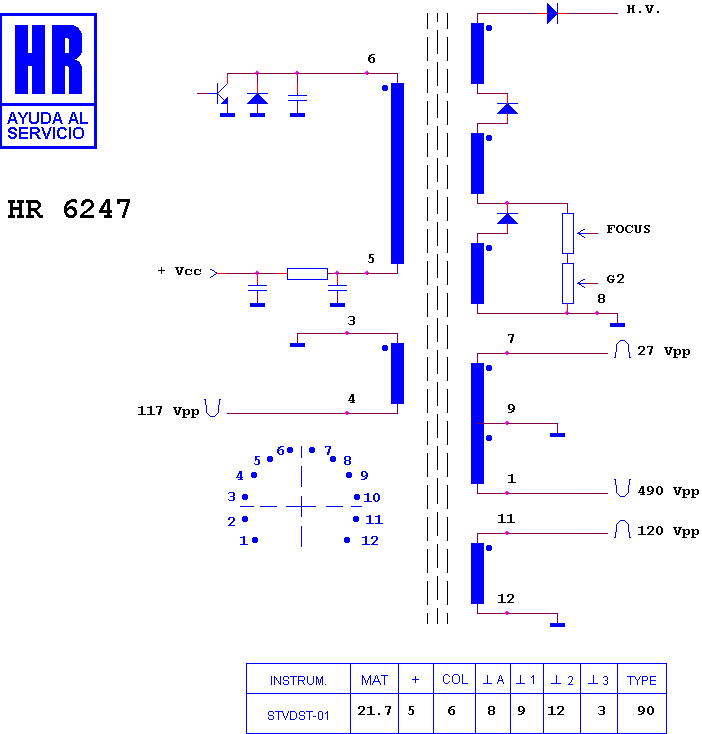

Schematic diagram for HR 6247
schematic

Manufacturer equivalents (1)

2431723

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8125

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

HITACHI COLOR 668 E · HITACHI CTP 668 E · KIDO COLOR 668 E · KIDO CTP 668 E
