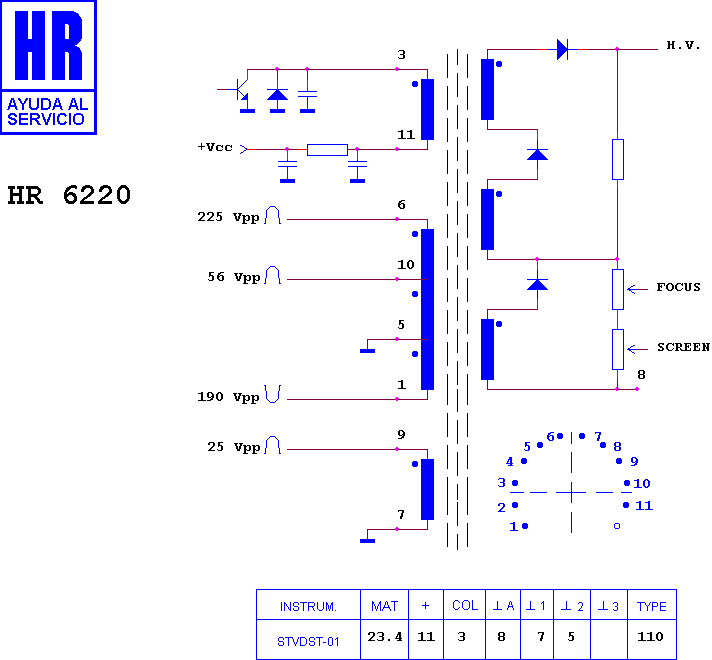

HR 6220

type ST · family 1BP1 · 23.4 kV maximum anode voltage · 110° deflection · 370 g

Manufacturer equivalents (19)

094-01046/0.7 · 094-01046/1.5 · 094-01046/2.3 · 094-01049/0.4 · 1182.0777 · 1182.0777 D · 1182.0837 · 94-01046/0.7 · 94-01046/1.5 · 94-01046/2.3 · 94-01049/0.4 · FAT 30364 · HR 1BPC 6220 · HR 6220 · HR 6220-00 · HR 6220-01 · HR 6220-02 · HR 6220-03 · KN 30364

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (17)

FISHER FTS 5610 TX · FISHER FTS 6310 TX · FISHER FTS 6510 · FISHER FTS 7010 · FISHER FTS 7110 TX · FISHER FTS 7111 TX · FISHER FTT 650 · FISHER FTT 700 · SANYO CEP 2570 D · SANYO CEP 2870 D · SANYO CHASIS ED 0 · SANYO CHASIS ED 0 110§ · SANYO FTS 5610 TX · SANYO FTS 6310 TX · SANYO FTS 7110 TX · SANYO FTS 7111 TX · SONITRON S 9328 ST
