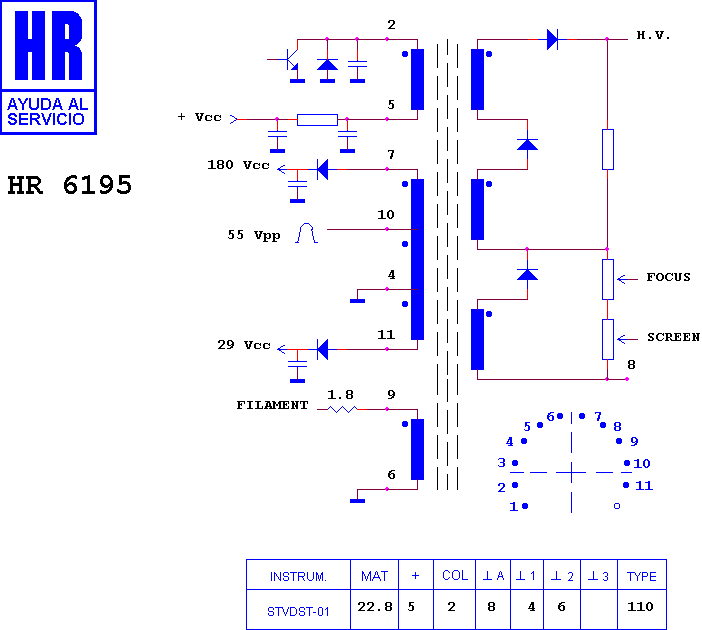

HR 6195

type ST · family 1BP1 · 22.8 kV maximum anode voltage · 110° deflection · 4 windings · 425 g

Manufacturer equivalents (15)

0000.0109 · 03738400 · 094-01036/0.1 · 094-01036/0.9 · 094-01036/2.5 · 1182.5014 · 1182.5014 B · 37384.00 · 94-01036/0.9 · D 376/37 · FAT 30366 · HR 6195 · HR 6195-12 · KN 30366 · TR 1191

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (8)

SANYO CEP 2193 F · SANYO CEP 2569 · SANYO CEP 2593 · SANYO CEP 2869 · SANYO CHASIS E 8 110§ · SONITRON S 725 · ZEND MONITOR VIDEO WALL · ZEND Z-MMF 28
