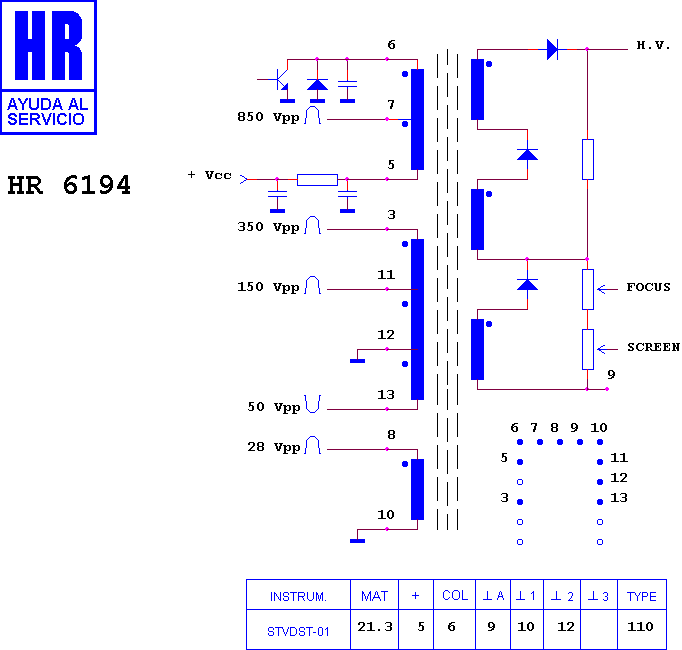

HR 6194

type ST · family 1BP · 21.3 kV maximum anode voltage · 110° deflection · 401 g

Manufacturer equivalents (2)

GTA 5031 · GTA 5031/B

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
