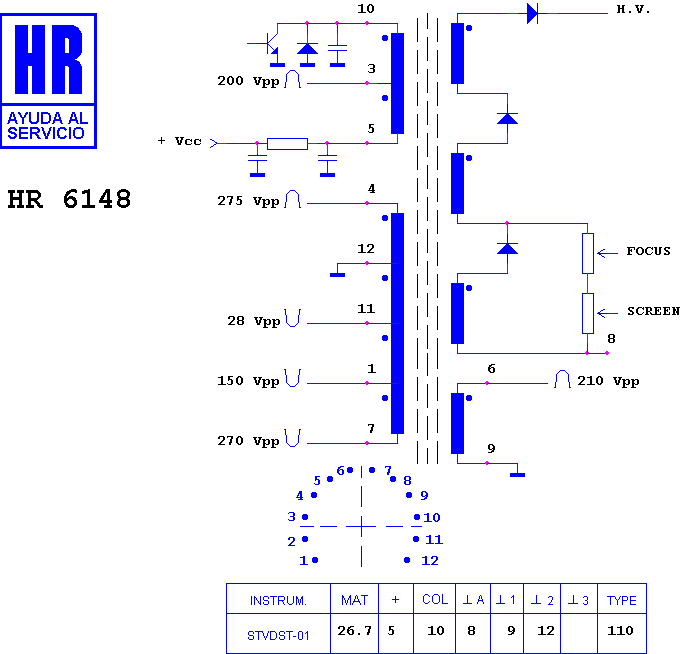

HR 6148

type ST · family 1BP1 · 26.7 kV maximum anode voltage · 110° deflection · 3 windings · 368 g

Manufacturer equivalents (1)

HR 6148

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 5729

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
