HR 6117

type ST · family 1BP1 · 24 kV maximum anode voltage · 110° deflection · 370 g

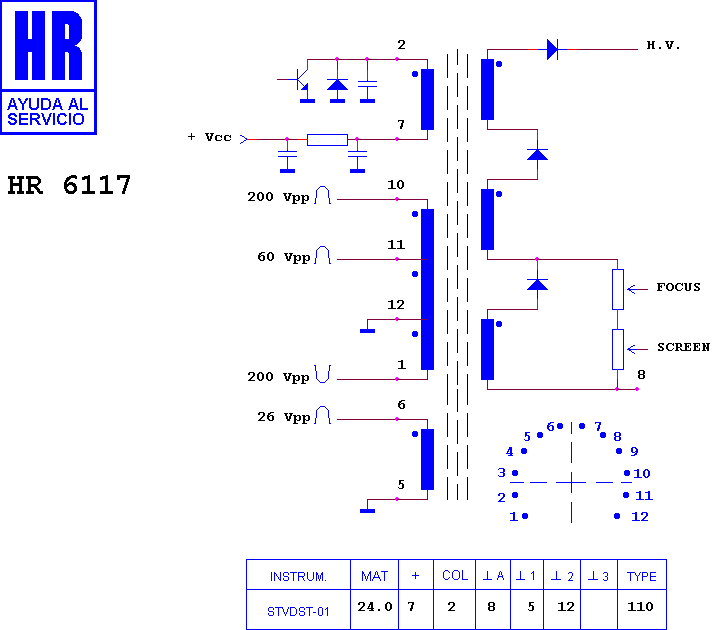

Schematic diagram for HR 6117
schematic

Manufacturer equivalents (2)

32053039 · HR 6117

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
