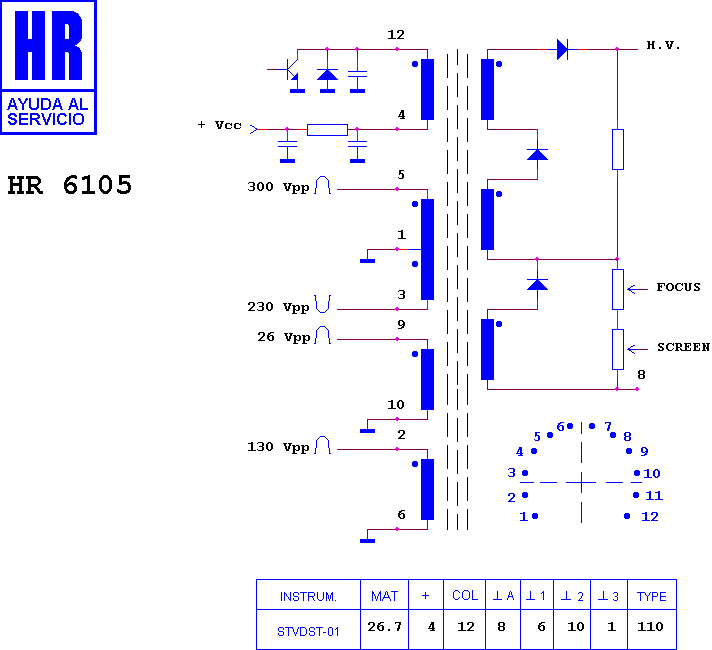

HR 6105

type ST · family 1BP1 · 26.7 kV maximum anode voltage · 110° deflection · 364 g

Manufacturer equivalents (3)

37364.00 · 37364.01 · HR 6105 B

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

CLARIVOX CHASIS C 960 110§ FULL
