HR 6086

type ST · family 1BS1 · 20.3 kV maximum anode voltage · 90° deflection · 4 windings · 410 g

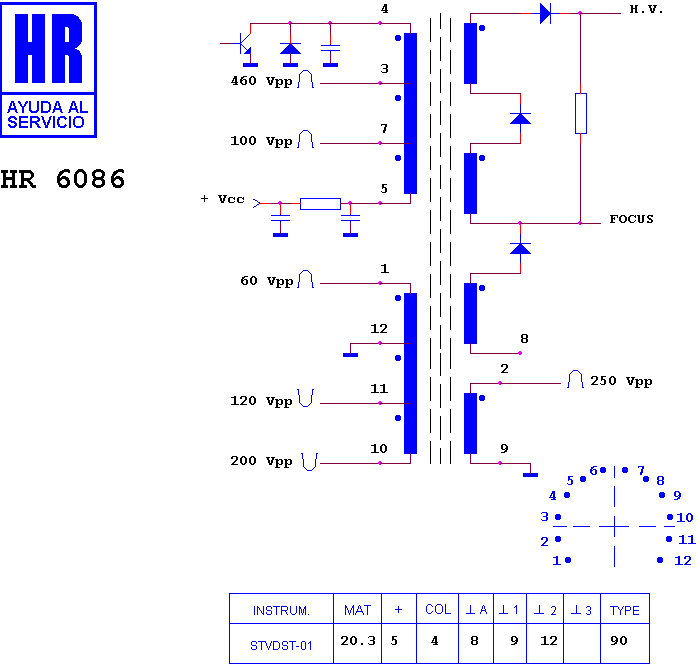

Schematic diagram for HR 6086
schematic

Manufacturer equivalents (6)

104872.20 · 471320.00 · 471320.01 · 471320.02 · 471320.03 · 534 TX 0182

Fitted to (3)

NORDMENDE CHASIS ICC 5 · SABA CHASIS ICC 5 · THOMSON CHASIS ICC 5
