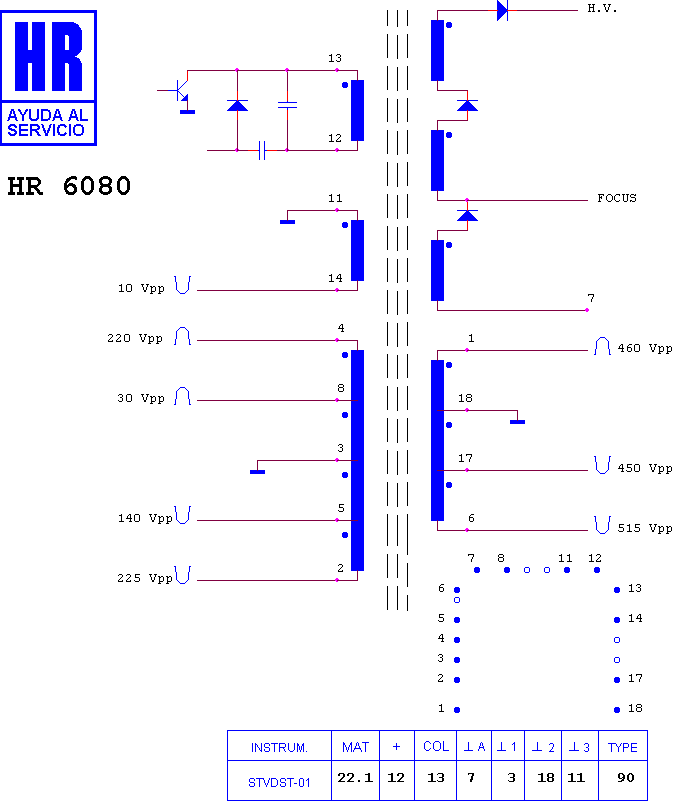

HR 6080

type ST · family 1IS1 · 22.1 kV maximum anode voltage · 90° deflection · 412 g

Manufacturer equivalents (5)

3122 138 36200 · 3122 138 36290 · AT 2076/80 · AT 2076/80 A · ME/5963-00

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16506 — EHT anode lead
• HR 16524 — Focus control

Fitted to (7)

SINGER 16234 · SINGER CHASIS 4000 · SINGER EOS · SINUDYNE 16224 · SINUDYNE 16234 · SINUDYNE CHASIS PROFESIONAL 4000 · SINUDYNE EOS
