HR 6079

type ST · family 1EE · 110° deflection · 7 windings · 575 g

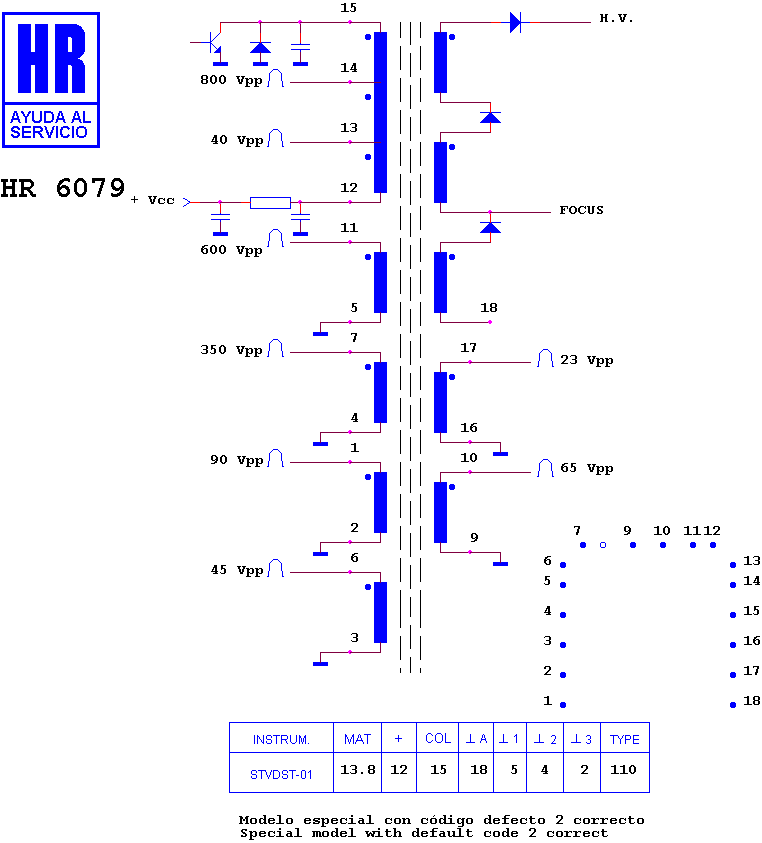

Schematic diagram for HR 6079 — schematic

Manufacturer equivalents (1)

AT 2076/26

Search this part in the full database
