HR 6071

type ST · family 1ES · 27.7 kV maximum anode voltage · 90° deflection · 3 windings · 603 g

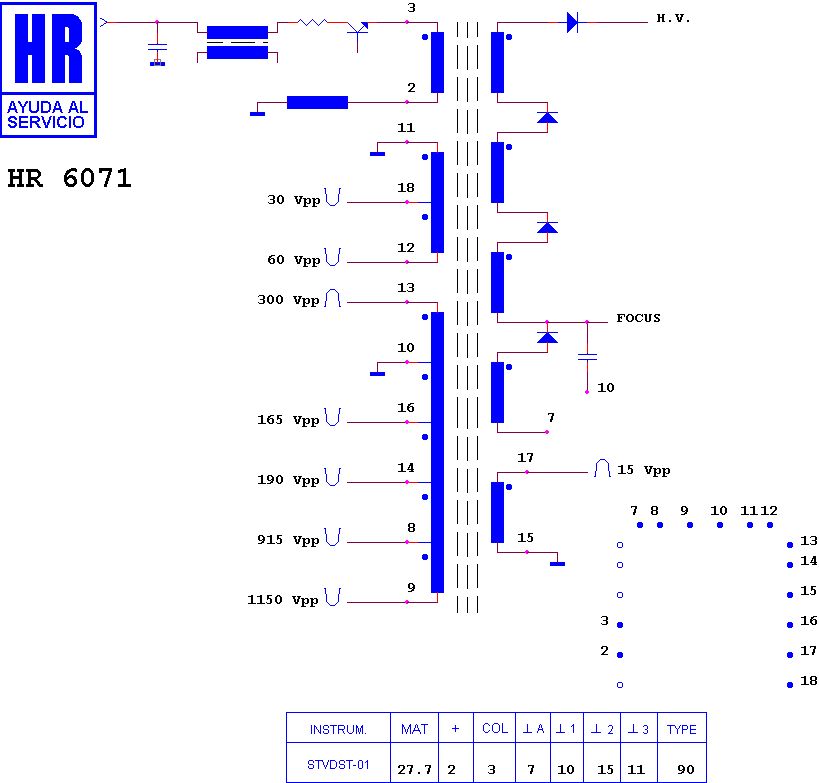

Schematic diagram for HR 6071
schematic

Manufacturer equivalents (6)

00 D-4-198-003 · AT 2076/71 · AT 2076/71 S · DT 2076/71 · FAT3764 · ME/5989-00

Fitted to (8)

BLAUPUNKT 7 666 110 · BLAUPUNKT K 2001 · BLAUPUNKT K 2001 KT 8 · FERGUSON-THORN-EMI 6603 · FERGUSON-THORN-EMI CHASIS TX 10 · FERGUSON-THORN-EMI TX 10 · PHILCO CHASIS TX 10 22" · PHILCO CHASIS TX 10 27"
