HR 6066

type ST · family 1BP · 23.7 kV maximum anode voltage · 110° deflection · 3 windings · 404 g

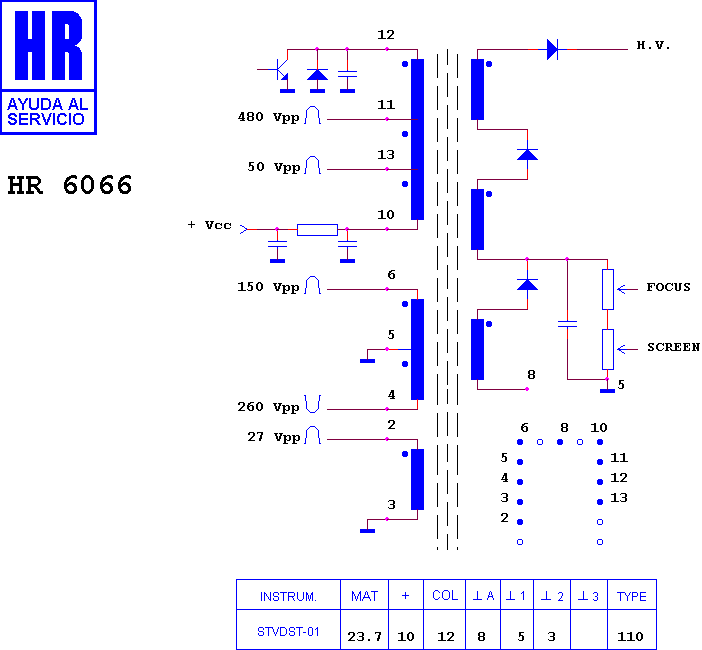

Schematic diagram for HR 6066
schematic

Manufacturer equivalents (2)

GTA 5017 · HR 6066/01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8532

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
