HR 6055

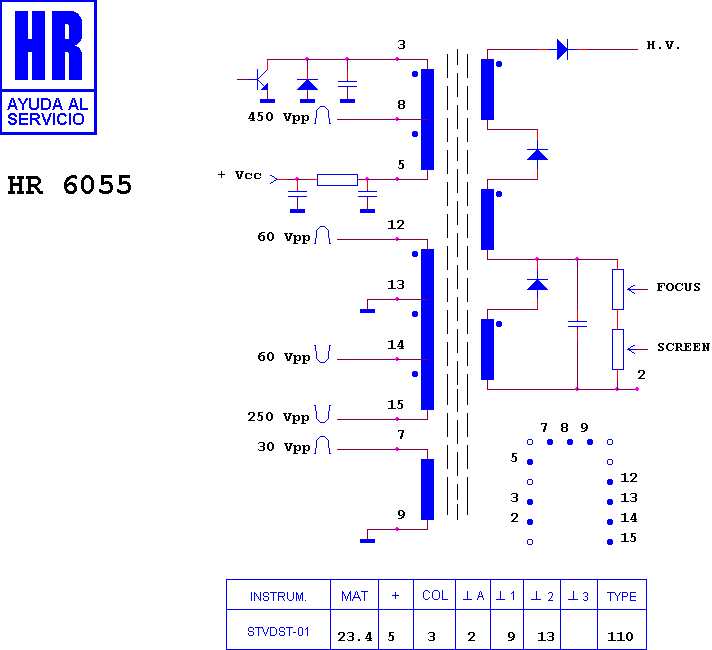

Schematic diagram for HR 6055
schematic

Manufacturer equivalents (1)

HR 6055

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

DACER TVC 110§ D.S.
