HR 6015

22.8 kV maximum anode voltage · L° deflection · 3 windings · 420 g

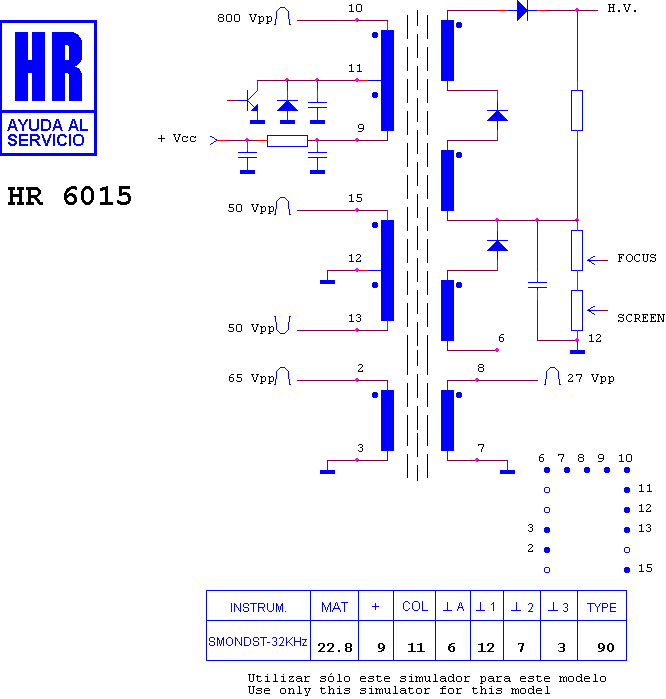

Schematic diagram for HR 6015
schematic
Schematic diagram for HR 6015
schematic (archived)

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
