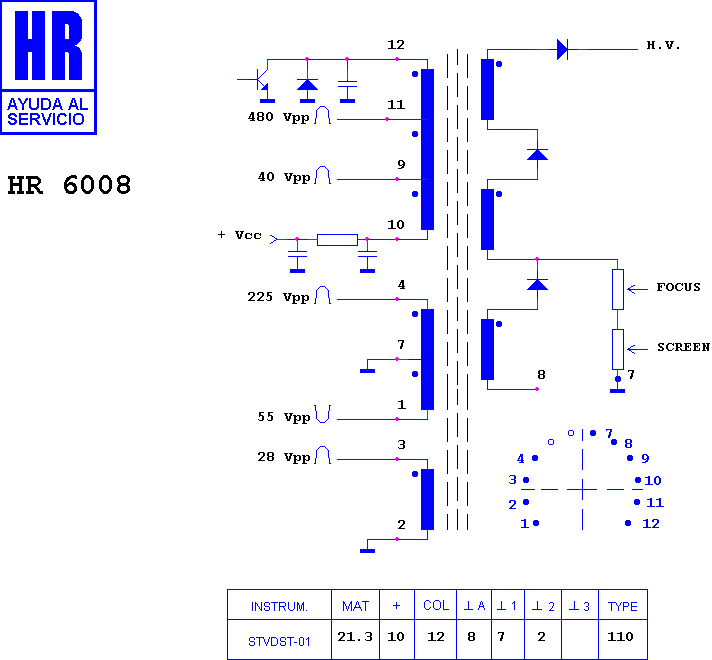

HR 6008

type ST · family 1BP1 · 21.3 kV maximum anode voltage · 110° deflection · 3 windings · 358 g

Manufacturer equivalents (6)

003331122 · D 278/37 · FAT 3891 · ME/6382-00 · RO 109 · TR 109

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6104

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

SONITEL PYRAMID 110§
