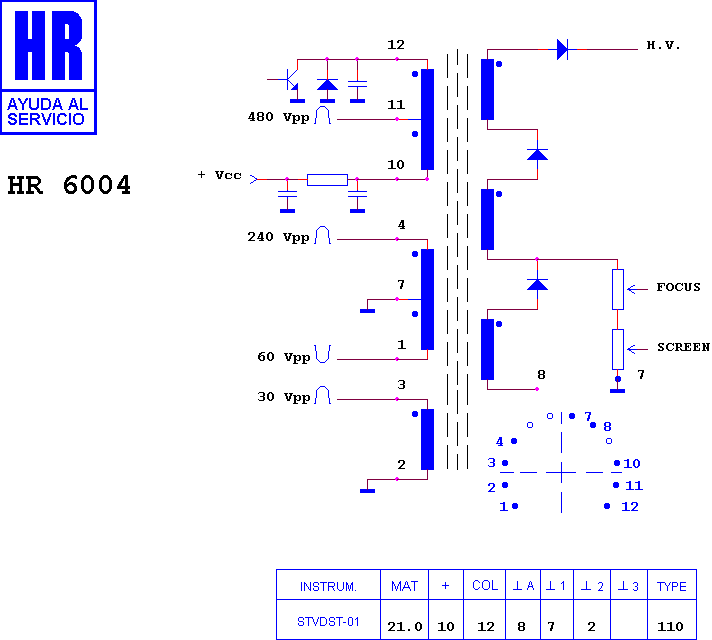

HR 6004

type ST · family 1BP1 · 21 kV maximum anode voltage · 110° deflection · 425 g

Manufacturer equivalents (20)

0.0105 · 0000.0105 · 003331002 · 1182.5011 · 17.843 · 3627.00 · 3627.01 · 3627.02 · 3627.03 · 3627.04 · 3627.05 · 3627.06 · 37334.00 · D 247/37 · FAT 3893 · HR 6004 · KN 3893 · ME/6384-00 · RO 115 · TR 115

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

ELBE CHASIS SHE 2 · ELBE TVC 2650 · ELBE TVC 2690
