HR 5651

type MC · family 7C1R · 189 g

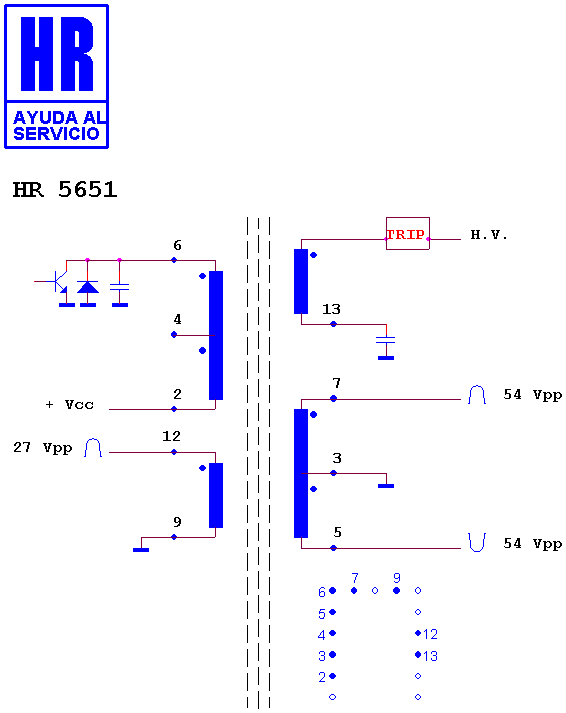

Schematic diagram for HR 5651 — schematic (recovered)

Manufacturer equivalents (2)

3650.00 · 3650.02

Search this part in the full database
