HR 5643

type MC · family 7C1R · 190 g

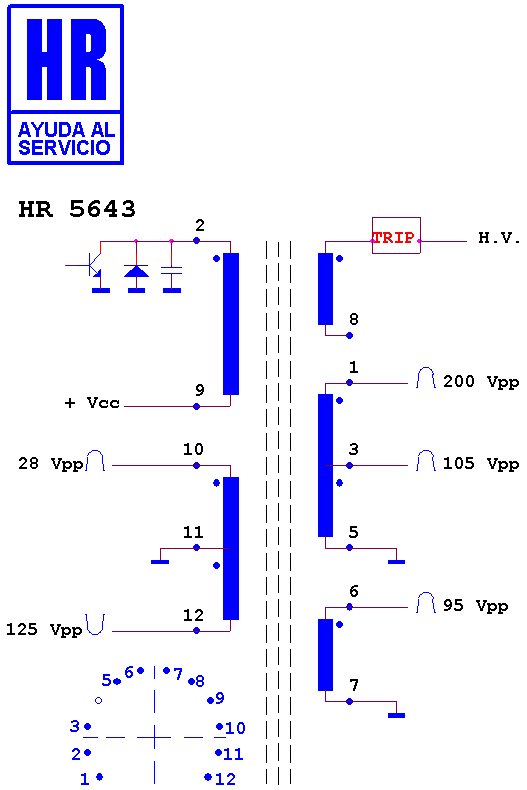

Schematic diagram for HR 5643
schematic (recovered)

Manufacturer equivalents (2)

4515 01 69 · TFAT 063-37

Fitted to (13)

AKAI CHASIS 5861 69 49 · AKAI CHASIS DIGITAL B-E 2 · AKAI CT 2590 · AKAI CT 2590 E · AKAI CT 2592 · AKAI CT 2592 E · AKAI CT 2892 E · AKAI CT 2892 F · AKAI CT 3890 · AKAI CT 3890 E · GRAETZ CHASIS DIGITA B-E2 BLACKLINE · NOKIA - ITT CHASIS 5861 69 49 · NOKIA - ITT CHASIS DIGITAL B-E 2 BLACKLINE
