HR 5636

type MC · family 7C1I · 193 g

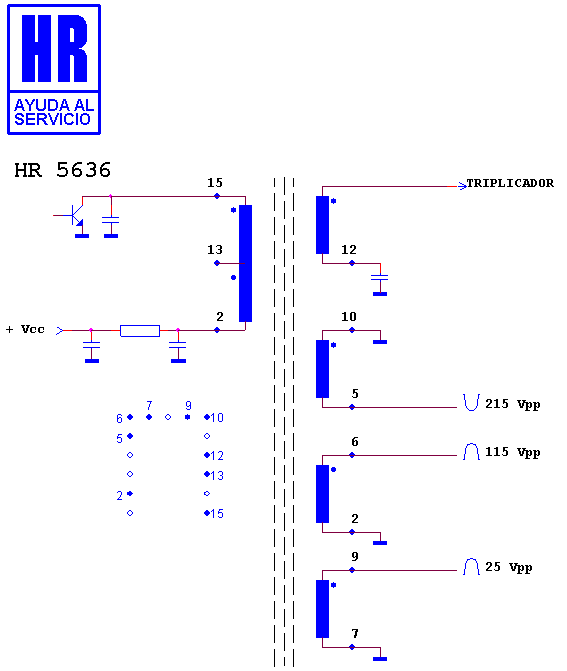

Schematic diagram for HR 5636 — schematic (recovered)

Manufacturer equivalents (1)

3636.00

Fitted to (2)

EMERSON CHASIS C 30 · KOLSTER CHASIS C 30

Search this part in the full database
