HR 5612

type MC · family 7C1R · 188 g

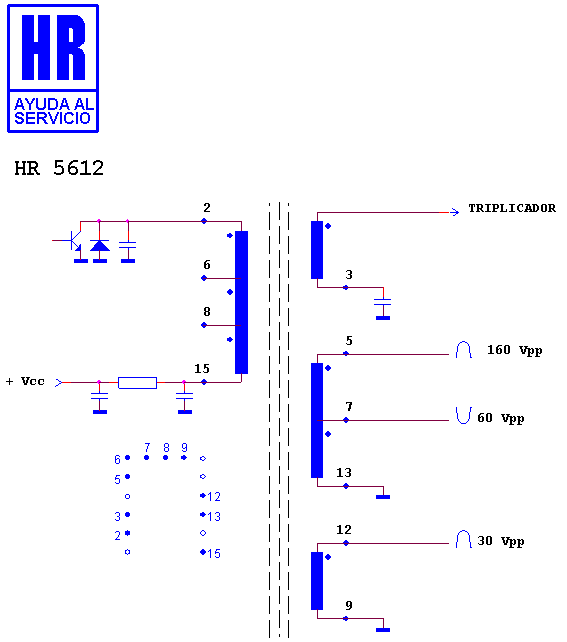

Schematic diagram for HR 5612
schematic (recovered)

Manufacturer equivalents (6)

094-01013/0.6 · 0940100902 · 3654.00 · 3654.01 · 94-01009/0.2 · 94-01013/0.6

Fitted to (6)

SANYO CFE 2699 · SANYO CHASIS EUROPA 2 110§ · SANYO CTP 7261 22" · SANYO CTP 7262 22" MD · SANYO CTP 8262 26" MD · SONITRON TVC 614
