HR 5611

type MC · family 7C1R · 183 g

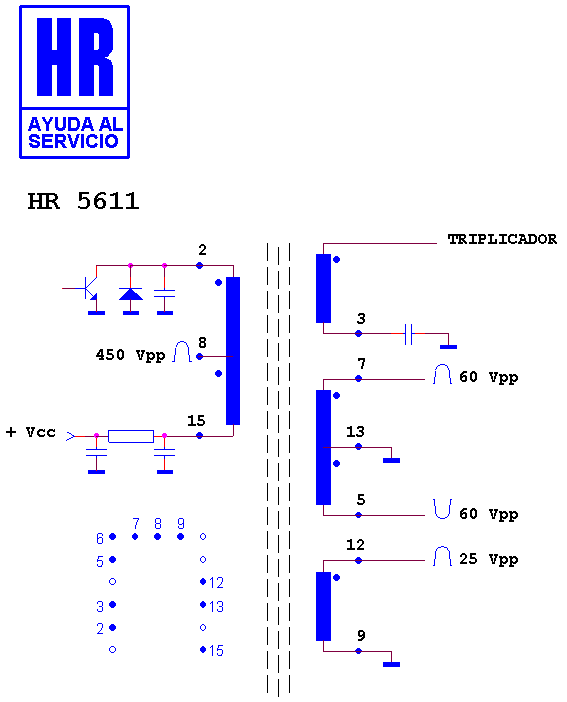

Schematic diagram for HR 5611
schematic (recovered)

Manufacturer equivalents (7)

094-01002/0.9 · 3611.00 · 3611.01 · 94-01002/0.9 · AZ 31 SA 1 · AZ 31 SA 3 · AZ 37 SA 3

Fitted to (13)

SANYO CHASIS 008 · SANYO CHASIS EUROPA 1 110§ · SANYO CTP 7208 CX · SANYO CTP 7243 · SANYO CTP 7243 22" · SANYO CTP 7260 · SANYO CTP 8209 · SANYO CTP 8243 · SANYO CTP 8243 26" · SANYO CTP 8260 · SANYO CTP 8261 26" · SONITRON TVC 722 · SONITRON TVC 726

Search this part in the full database
