HR 5601

type MC · family 7C1I · 195 g

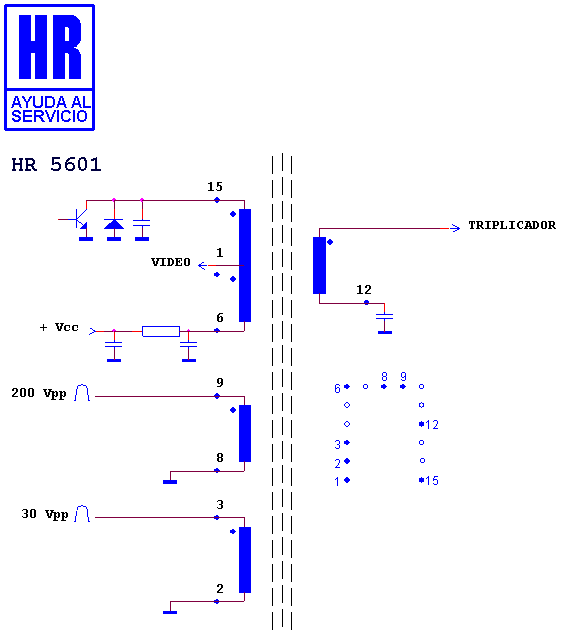

Schematic diagram for HR 5601 — schematic (recovered)

Manufacturer equivalents (1)

85-3176-5

Fitted to (1)

DECCA COLOUR CHASIS 110§ 30 AX

Search this part in the full database
