HR 5600

type MC · family 7C1R · 195 g

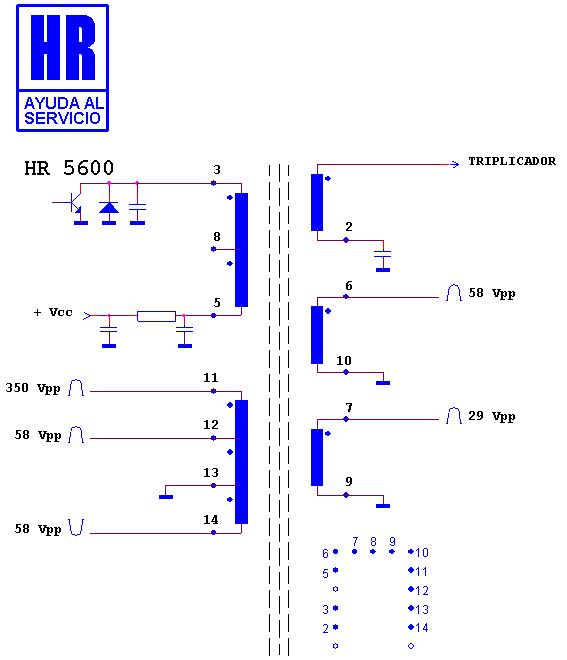

Schematic diagram for HR 5600 — schematic (recovered)

Manufacturer equivalents (2)

3601.00 · 3601.01

Search this part in the full database

HR Diemen is a trademark of Efiter S.L. This archive is not affiliated with, endorsed by, or connected to Efiter or HR Diemen.
