HR 5571

type MC · family 7C2R · 260 g

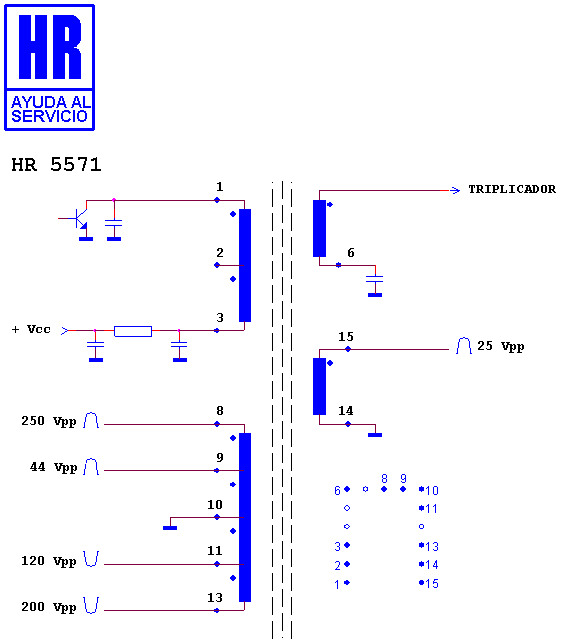

Schematic diagram for HR 5571
schematic (recovered)

Manufacturer equivalents (11)

2688 · 3571.00 · 3571.01 · 3571.02 · 3571.03 · 3571.04 · 358.200 · 525.519 · 525.537 · FAT3644 · ME/5952-00

Fitted to (73)

NORDMENDE 0.536 D · NORDMENDE 1.510 A · NORDMENDE 1.510 J · NORDMENDE 1.513 A · NORDMENDE 1.513 J · NORDMENDE 1.515 A · NORDMENDE 1.515 J · NORDMENDE 1.520 A · NORDMENDE 1.521 A · NORDMENDE 1.521 J · NORDMENDE 1.523 F · NORDMENDE 1.530 A · NORDMENDE 1.530 J · NORDMENDE 1.530 L · NORDMENDE 1.531 J · NORDMENDE 1.532 J · NORDMENDE 2.511 A · NORDMENDE 2.511 J · NORDMENDE 2.513 A · NORDMENDE 2.513 J · NORDMENDE 2.515 A · NORDMENDE 2.515 J · NORDMENDE 2.521 A · NORDMENDE 2.521 F · NORDMENDE 2.523 A · NORDMENDE 2.523 F · NORDMENDE 2.525 J · NORDMENDE 2.530 A · NORDMENDE 2.532 A · NORDMENDE 2.532 J · NORDMENDE 2.533 A · NORDMENDE 2.536 J · NORDMENDE 2.537 J · NORDMENDE 3.513 A · NORDMENDE 3.513 J · NORDMENDE 3.515 A · NORDMENDE 3.515 J · NORDMENDE 780.536 · NORDMENDE 781.536 · NORDMENDE 782.536 · NORDMENDE CHASIS F 7 · NORDMENDE CHASIS F 8 · NORDMENDE CHASIS F 8 SK 3 · NORDMENDE COLOR 2000 · NORDMENDE SPECTRA COLOR PORTABLE 3602 · NORDMENDE SPECTRA COLOR PORTABLE T 3436 · NORDMENDE SPECTRA COLOR PORTABLE T 3438 · NORDMENDE SPECTRA COLOR PORTABLE T 3633 · NORDMENDE SPECTRA COLOR PORTABLE T 4232 · NORDMENDE SPECTRA COLOR PORTABLE T 4233 · NORDMENDE SPECTRA COLOR PORTABLE T 4632 · NORDMENDE SPECTRA COLOR PORTABLE T 4633 · NORDMENDE SPECTRA COLOR SC 1132 · NORDMENDE SPECTRA COLOR SK3 SC 1130 · NORDMENDE SPECTRA COLOR SK3 SC 1132 · NORDMENDE SPECTRA COLOR SK3 SC 1330 · NORDMENDE SPECTRA COLOR SK3 SC 1332 · NORDMENDE SPECTRA COLOR SK3 T 3130 · NORDMENDE SPECTRA COLOR SK3 T 3132 · NORDMENDE SPECTRA COLOR SK3 T 3330 · NORDMENDE SPECTRA COLOR SK3 T 3332 · NORDMENDE SPECTRA COLOR SK3 T 3332 VT · NORDMENDE SPECTRA COLOR SK3 TP 3132 · NORDMENDE SPECTRA COLOR SK3 TP 3232 · NORDMENDE SPECTRA COLOR SK3 TP 3320 · NORDMENDE SPECTRA COLOR SK3 TP 3322 · NORDMENDE SPECTRA COLOR SK3 TP 3372 · NORDMENDE SPECTRA PORTABLE COLOR T 3633 · NORDMENDE SPECTRA PORTABLE COLOR T 4233 · NORDMENDE SPECTRA PORTABLE COLOR T 4633 · NORDMENDE SPECTRA STEREOSONIC SK3 T 3436 · NORDMENDE SPECTRA STEREOSONIC SK3 T 3438 · NORDMENDE T 3436
