HR 5570

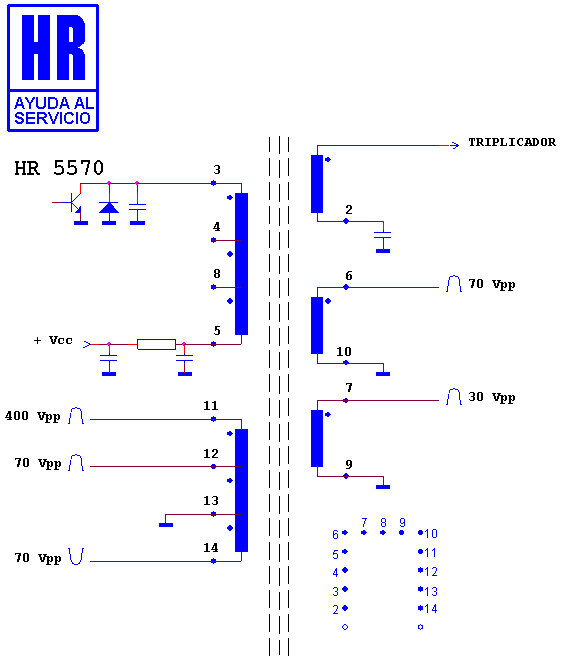

Schematic diagram for HR 5570 — schematic (recovered)

Manufacturer equivalents (3)

3570.00 · 3570.01 · AZ 3115 A

Fitted to (2)

TALENT TVC 20" · VANGUARD CHASIS PIL 90§

Search this part in the full database
