HR 5567

type MC · family 7C1R · 190 g

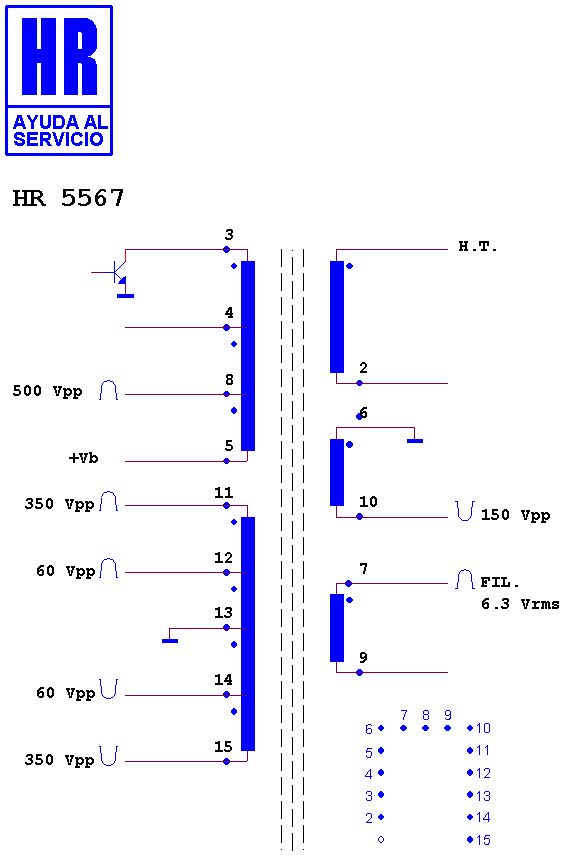

Schematic diagram for HR 5567 — schematic (recovered)

Manufacturer equivalents (2)

AZ 3114 A 47 · FAT 3711

Search this part in the full database

HR Diemen is a trademark of Efiter S.L. This archive is not affiliated with, endorsed by, or connected to Efiter or HR Diemen.
