HR 5546

type MC · family 7C2R · 260 g

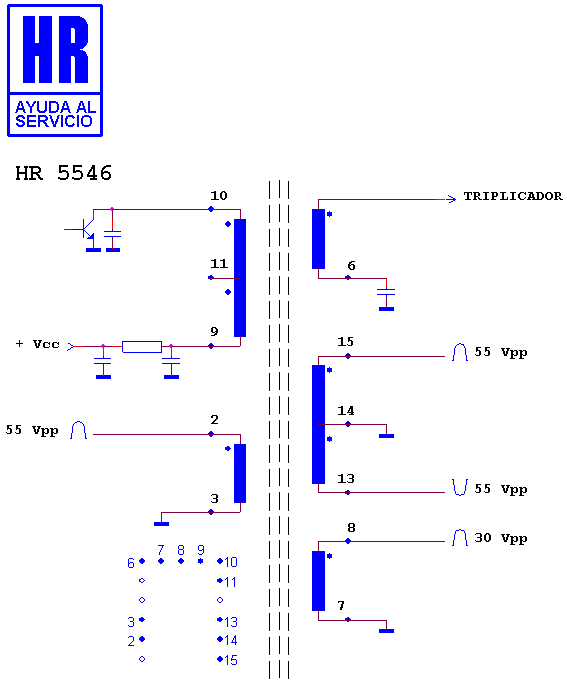

Schematic diagram for HR 5546 — schematic (recovered)

Manufacturer equivalents (3)

3546.00 · 3546.01 · CT 3212

Fitted to (1)

NORDMENDE SPECTRA COLOR

Search this part in the full database
