HR 5544

type MC · family 7C2R · 255 g

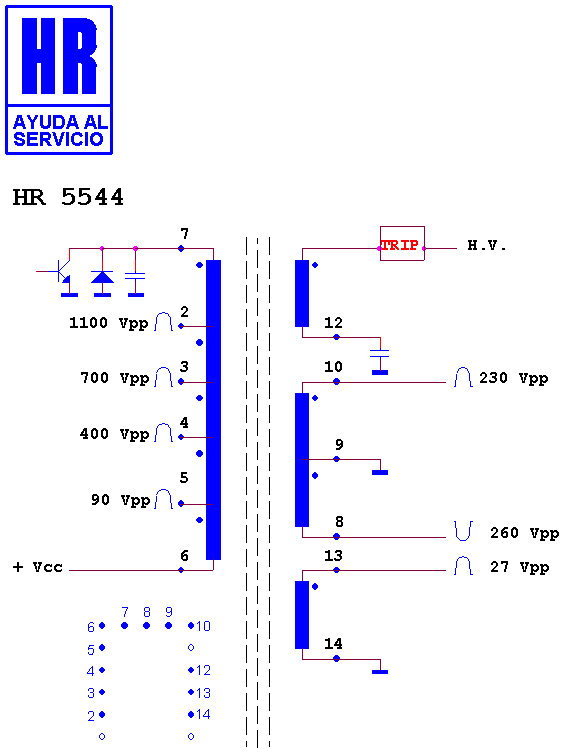

Schematic diagram for HR 5544 — schematic (recovered)

Manufacturer equivalents (3)

00 H 07010500 · 00 H 07018200 · 3544.00

Search this part in the full database
