HR 5523

type MC · family 7C2R · 270 g

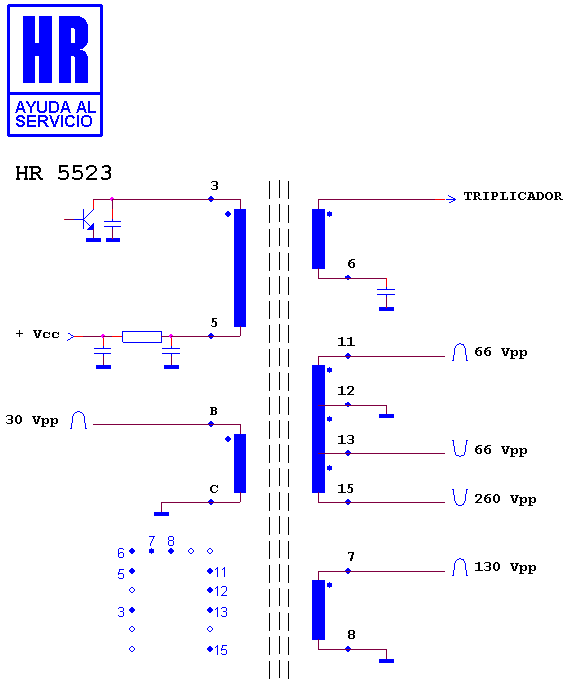

Schematic diagram for HR 5523
schematic (recovered)

Manufacturer equivalents (3)

3523.00 · 3523.02 · LM 3123

Fitted to (1)

THOMSON CHASIS B 10 90§ 16"-20"
