HR 46279

31.2 kV maximum anode voltage · 110° deflection · 4 windings · 444 g

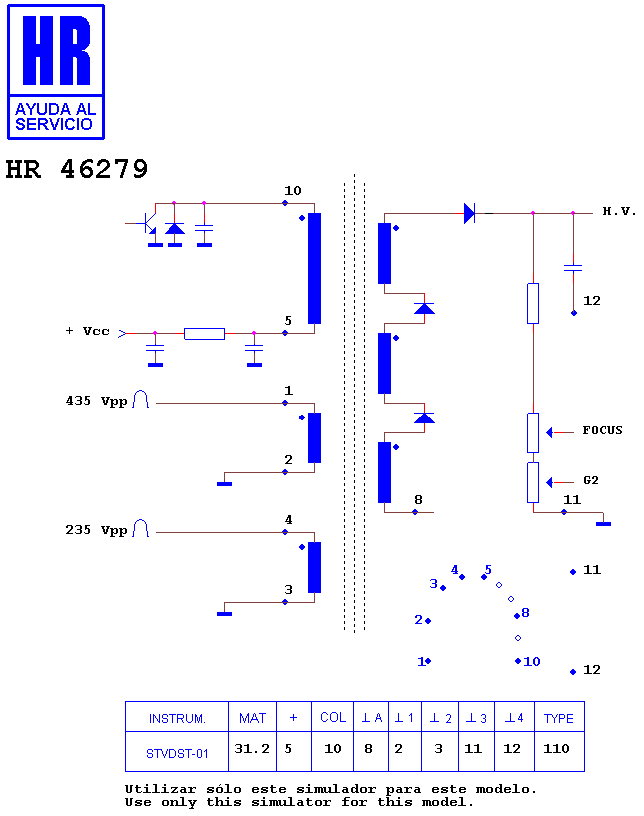

Schematic diagram for HR 46279
schematic (archived)

Manufacturer equivalents (5)

10487231 · 28788352 · 452210487231 · 822228788352 · 88352
