HR 46278

25.6 kV maximum anode voltage · L° deflection · 3 windings · 444 g

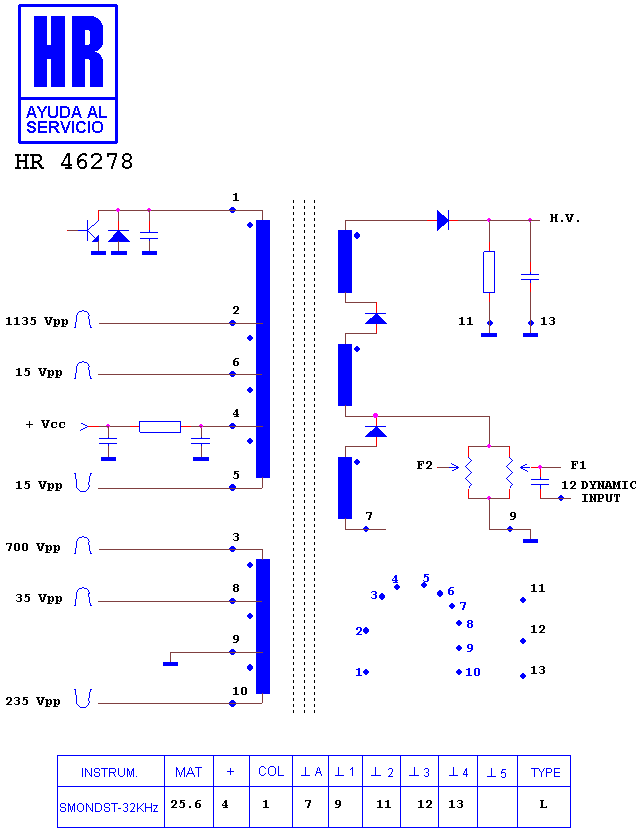

Schematic diagram for HR 46278
schematic (archived)

Manufacturer equivalents (5)

1412.2001 · 1412.2001A · 1412.2001C · 30006740 · KJF9847C

Fitted to (16)

E C 1721 B · E C MONITOR · FUNAI 1721 · FUNAI 1721 B · FUNAI 1721 B ES · FUNAI MONITOR · FUNAI MONITOR · FUNAI MONITOR · OLYMPIA 1721 B · OLYMPIA MONITOR · VESTEL 1521 · VESTEL 1721 · VESTEL M 1721 B · VESTEL MONITOR · VESTEL MONITOR · VESTEL MONITOR
