HR 46274

type SM · family 1WD · 4 kV maximum anode voltage · L° deflection · 3 windings · 444 g

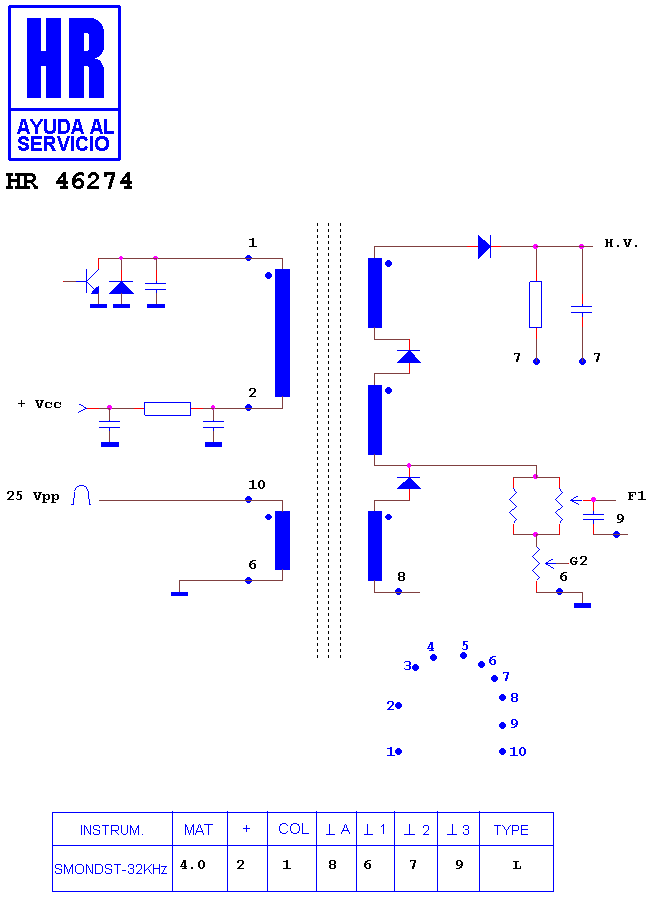

Schematic diagram for HR 46274
schematic (archived)

Manufacturer equivalents (2)

CF 0801-240107 · LCE CF 0801-240107

Fitted to (2)

SANWA 29 E 31 S · SANWA MONITOR
