HR 46271

type SM · family 1WD · 26.8 kV maximum anode voltage · H° deflection · 3 windings · 474 g

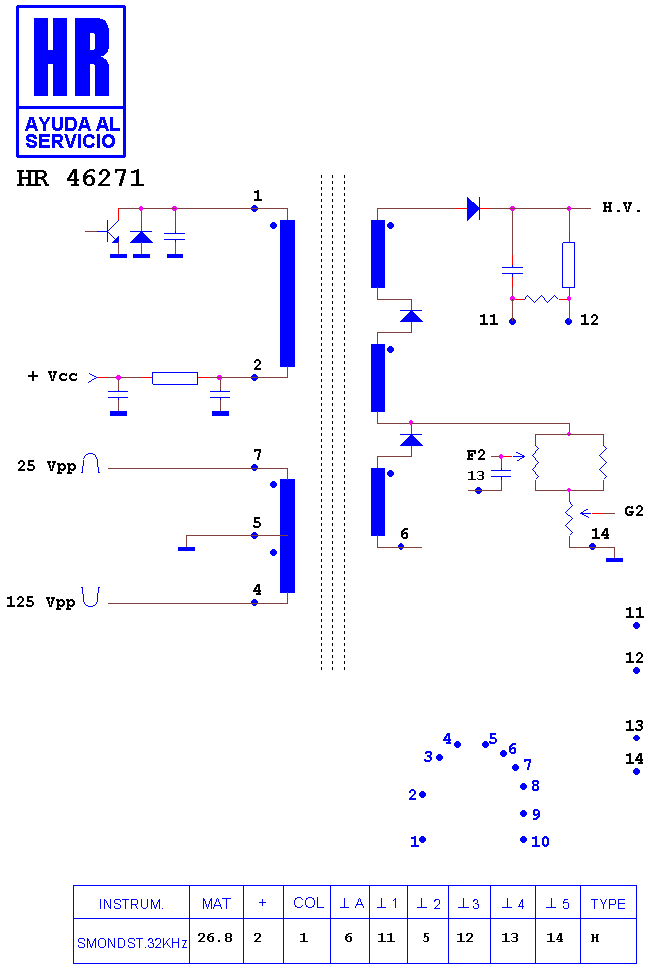

Schematic diagram for HR 46271
schematic (archived)

Manufacturer equivalents (2)

353-0032-33106 · FCA 133

Fitted to (2)

PENTRANIC A 89 · PENTRANIC MONITOR

Search this part in the full database
