HR 46270

23 kV maximum anode voltage · H° deflection · 4 windings · 444 g

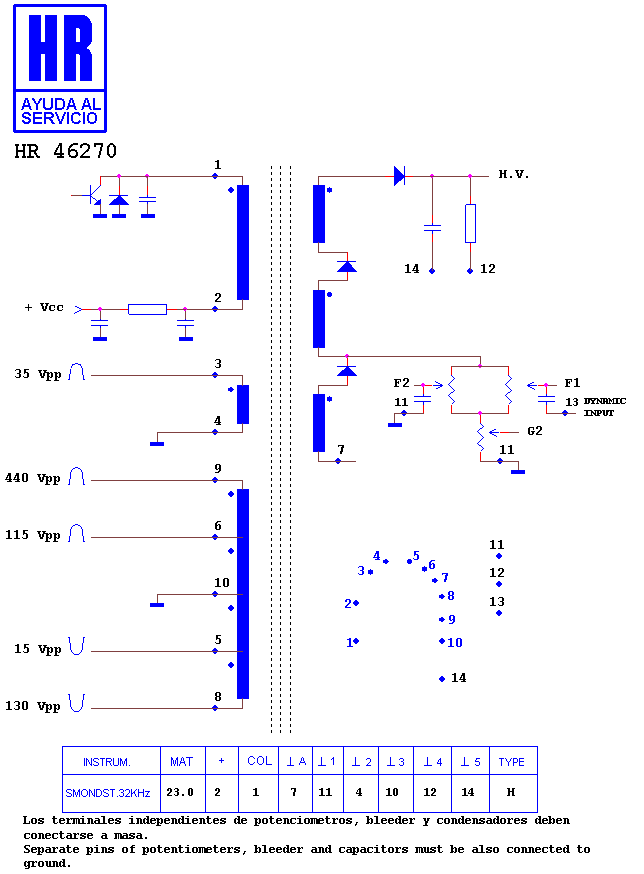

Schematic diagram for HR 46270
schematic (archived)

Manufacturer equivalents (8)

053X066-7001 · 053X066-8001 · 53X0667-001 · 53X0668-001 · CT8828 · CT8858A · DNF-FT0014 · FT0014

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6630

Fitted to (9)

WELLS GARDNER 17 D 9103 · WELLS GARDNER 18 D 9103 · WELLS GARDNER 1891 · WELLS GARDNER CHASIS D 9100 · WELLS GARDNER MONITOR · WELLS GARDNER MONITOR · WELLS GARDNER MONITOR · WELLS GARDNER MONITOR · WELLS GARDNER WGE 1891

Search this part in the full database
