HR 46268

4 kV maximum anode voltage · L° deflection · 3 windings · 474 g

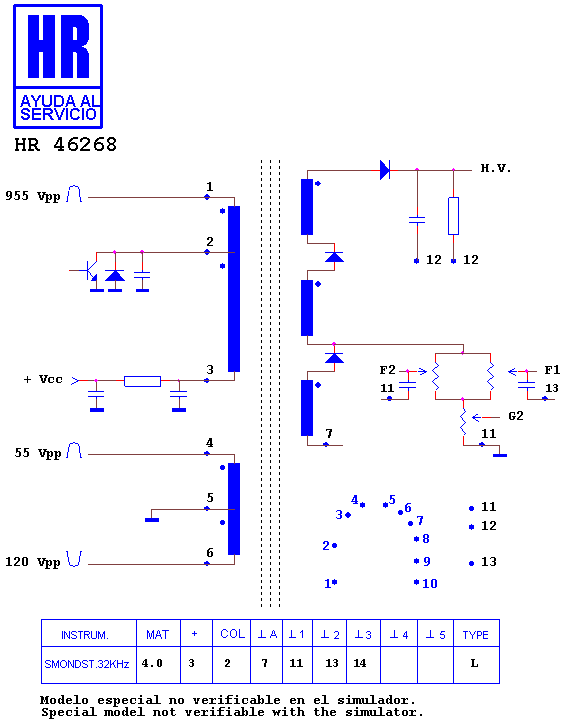

Schematic diagram for HR 46268
schematic (archived)

Manufacturer equivalents (3)

6174T13003E · 6174Z1024A · Y265434

Fitted to (167)

GOLDSTAR - LG 500 G · GOLDSTAR - LG 500 G · GOLDSTAR - LG 530 S · GOLDSTAR - LG 700 S · GOLDSTAR - LG 700 S · GOLDSTAR - LG 710 BH · GOLDSTAR - LG 710 E · GOLDSTAR - LG 710 E · GOLDSTAR - LG 710 S · GOLDSTAR - LG 730 SHK · GOLDSTAR - LG 770 EL · GOLDSTAR - LG 775 FT · GOLDSTAR - LG 775 FT · GOLDSTAR - LG 78 FT · GOLDSTAR - LG 78 FT PLUS · GOLDSTAR - LG 79 FT · GOLDSTAR - LG 79 FT · GOLDSTAR - LG 793 FT · GOLDSTAR - LG 793 FT · GOLDSTAR - LG 795 · GOLDSTAR - LG 795 · GOLDSTAR - LG 795 B PLUS · GOLDSTAR - LG 795 B PLUS · GOLDSTAR - LG 795 BE · GOLDSTAR - LG 795 F · GOLDSTAR - LG 795 F · GOLDSTAR - LG 795 FT · GOLDSTAR - LG 795 FT · GOLDSTAR - LG 795 FT PLUS · GOLDSTAR - LG 795 FT PLUS · GOLDSTAR - LG 795 PLUS · GOLDSTAR - LG 795 PLUS · GOLDSTAR - LG C 15 JA · GOLDSTAR - LG C 17 LC 0 · GOLDSTAR - LG C 17 LC 7 · GOLDSTAR - LG C 17 LC 7 · GOLDSTAR - LG CB 777 G · GOLDSTAR - LG CB 777 G-NE · GOLDSTAR - LG CHASIS CA 69 · GOLDSTAR - LG EZT 530 S · GOLDSTAR - LG EZT 710 BH · GOLDSTAR - LG F 700 B · GOLDSTAR - LG F 700 B · GOLDSTAR - LG F 900 P · GOLDSTAR - LG F 900 P · GOLDSTAR - LG FB 770 EL · GOLDSTAR - LG FB 770 EL · GOLDSTAR - LG FB 792 · GOLDSTAR - LG FB 792 · GOLDSTAR - LG FB 795 B · GOLDSTAR - LG FB 795 B · GOLDSTAR - LG FB 795 B + · GOLDSTAR - LG FB 795 B + · GOLDSTAR - LG FB 795 B PLUS · GOLDSTAR - LG FB 795 B PLUS · GOLDSTAR - LG FB 795 BE · GOLDSTAR - LG FB 795 FT · GOLDSTAR - LG FT 710 BH · GOLDSTAR - LG FT 775 FT · GOLDSTAR - LG FT 793 FT · GOLDSTAR - LG FT 795 · GOLDSTAR - LG FT 795 BE · GOLDSTAR - LG FT 795 PLUS · GOLDSTAR - LG FT 900 P · GOLDSTAR - LG FT 900 P · GOLDSTAR - LG FV 791 B · GOLDSTAR - LG GF 775 · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR STUDIO WORKS · GOLDSTAR - LG MONITOR STUDIO WORKS · GOLDSTAR - LG MONITOR STUDIO WORKS · GOLDSTAR - LG MONITOR STUDIO WORKS · GOLDSTAR - LG MONITOR STUDIO WORKS · GOLDSTAR - LG SH 06 K · GOLDSTAR - LG STUDIOWORKS500G · GOLDSTAR - LG STUDIOWORKS710S · GOLDSTAR - LG SW 500 G · GOLDSTAR - LG SW 700 S · GOLDSTAR - LG SW 710 E · GOLDSTAR - LG SW 710 S · GOLDSTAR - LG T 151 A 0 · GOLDSTAR - LG T 151 A 0 · GOLDSTAR - LG T 530 C · GOLDSTAR - LG T 530 C · GOLDSTAR - LG T 530 S · GOLDSTAR - LG T 530 S · GOLDSTAR - LG T 710 BH · GOLDSTAR - LG T 710 BH · GOLDSTAR - LG T 730 BHK · GOLDSTAR - LG T 730 SHK
