HR 46258

type SM · family 1WD · 44.3 kV maximum anode voltage · H° deflection · 3 windings · 444 g

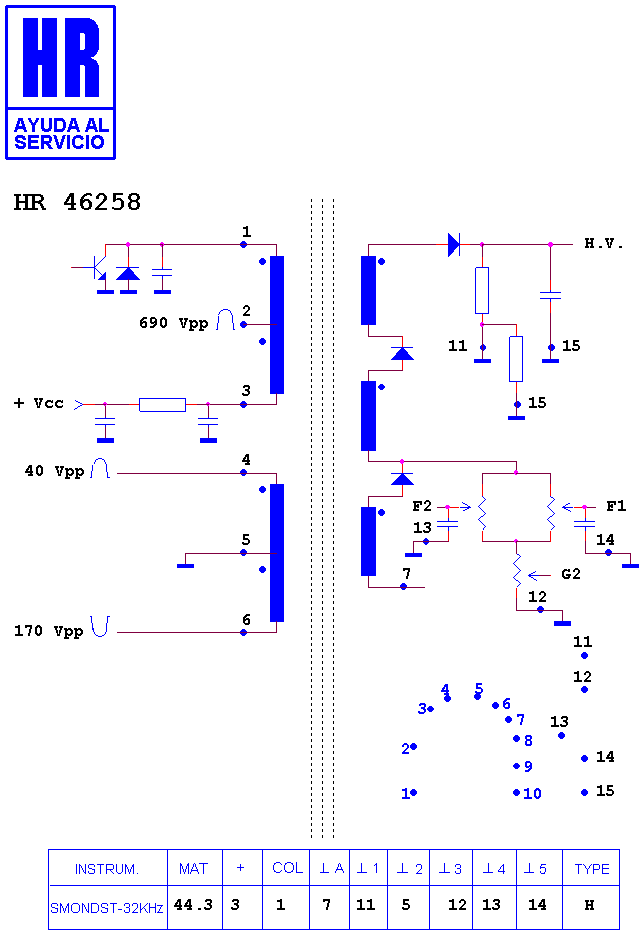

Schematic diagram for HR 46258
schematic (archived)

Manufacturer equivalents (1)

FEA 652

Fitted to (3)

TATUNG MONITOR · TATUNG SVGA · TATUNG VGA

Search this part in the full database
