HR 46240

28.8 kV maximum anode voltage · 110° deflection · 5 windings · 461 g

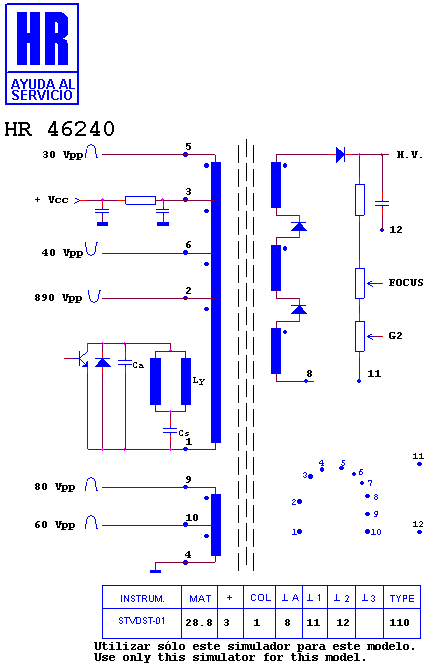

Schematic diagram for HR 46240 — schematic (archived)

Manufacturer equivalents (2)

ZTFJ74002 · ZTFJ74002A

Search this part in the full database
