HR 46239

25.5 kV maximum anode voltage · H° deflection · 4 windings · 444 g

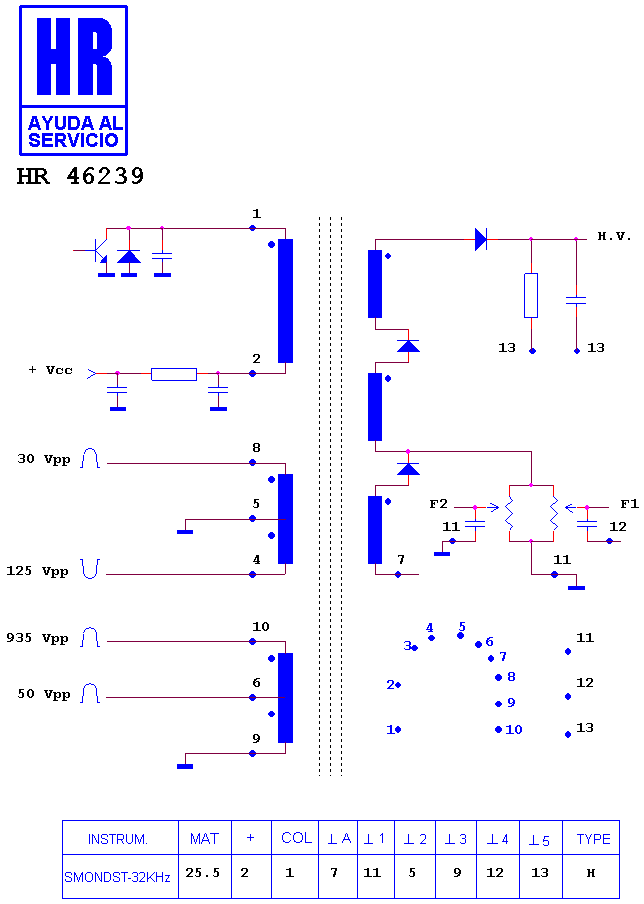

Schematic diagram for HR 46239
schematic (archived)

Manufacturer equivalents (1)

6174Z1031D

Fitted to (68)

GOLDSTAR - LG 774 CB · GOLDSTAR - LG 774 FT · GOLDSTAR - LG 774 FT · GOLDSTAR - LG 775 · GOLDSTAR - LG 775 · GOLDSTAR - LG 775 BE ULTRA · GOLDSTAR - LG 775 FD · GOLDSTAR - LG 775 FD · GOLDSTAR - LG 775 FT · GOLDSTAR - LG 775 FT · GOLDSTAR - LG 776 FM · GOLDSTAR - LG FB 774 B · GOLDSTAR - LG FB 774 BC ULTRA · GOLDSTAR - LG FB 774 BC ULTRA · GOLDSTAR - LG FB 774 CB · GOLDSTAR - LG FB 774 CB · GOLDSTAR - LG FB 775 B · GOLDSTAR - LG FB 775 BE ULTRA · GOLDSTAR - LG FB 775 F · GOLDSTAR - LG FB 775 FT · GOLDSTAR - LG FB 775 FT · GOLDSTAR - LG FB 795 B · GOLDSTAR - LG FM 76 B-CA · GOLDSTAR - LG FM 76 B-CA · GOLDSTAR - LG FM 776 B · GOLDSTAR - LG FT 774 FT · GOLDSTAR - LG FT 774 FT · GOLDSTAR - LG FT 775 · GOLDSTAR - LG FT 775 BE · GOLDSTAR - LG FT 775 BE · GOLDSTAR - LG FT 775 BE ULTRA · GOLDSTAR - LG FT 775 FD · GOLDSTAR - LG FT 775 FT · GOLDSTAR - LG LCD 774 FT · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON · GOLDSTAR - LG MONITOR FLATRON

Search this part in the full database
