HR 46236

60.7 kV maximum anode voltage · H° deflection · 4 windings · 444 g

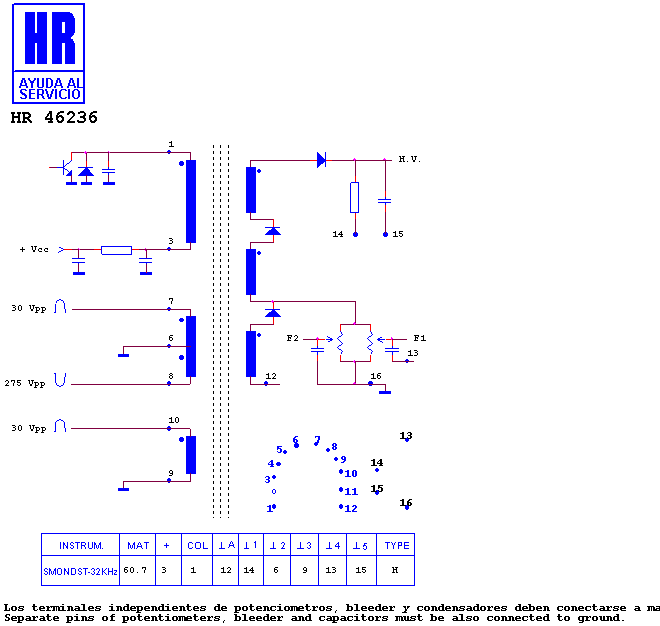

Schematic diagram for HR 46236
schematic (archived)

Manufacturer equivalents (4)

8-598-958-00 · 8-598-958-01 · 8-598-958-10 · NX4110

Fitted to (6)

IBM 6554 · IBM MONITOR · IBM MONITOR · IBM P 70 · SONY GDM 17 SE 2 T · SONY MONITOR
