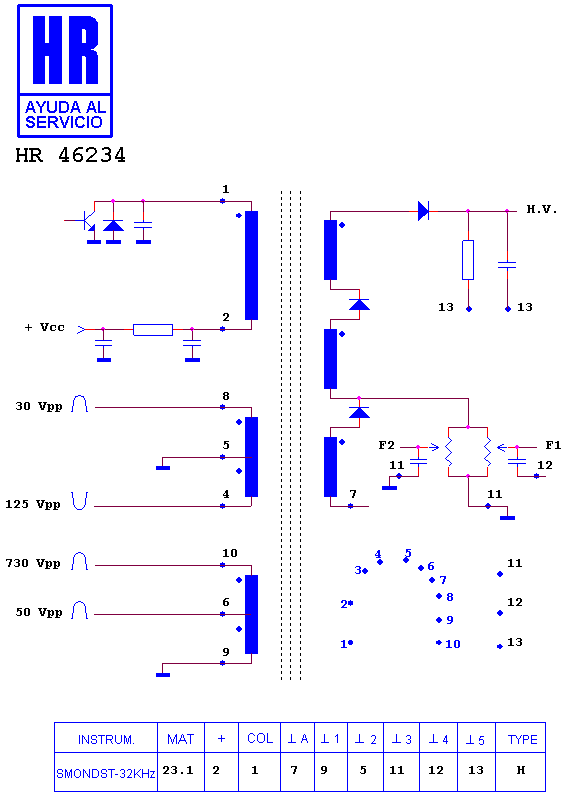

HR 46234

type SM · family 1WD · 23.1 kV maximum anode voltage · H° deflection · 4 windings · 444 g

Manufacturer equivalents (2)

6174 Z 1031 A · 6174Z1031B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46225

Notes

COD-035 IN THIS HR TRANSFORMER THE SCREEN POTENTIOMETER IS NOT USED

Fitted to (15)

LG - GOLDSTAR 775 · LG - GOLDSTAR 775 BC · LG - GOLDSTAR 775 FL · LG - GOLDSTAR 775 FT · LG - GOLDSTAR CHASIS CA 65 · LG - GOLDSTAR FB 774 B · LG - GOLDSTAR FB 775 BC · LG - GOLDSTAR FB 775 SFT · LG - GOLDSTAR FT 775 · LG - GOLDSTAR FT 775 BC · LG - GOLDSTAR FT 775 FL · LG - GOLDSTAR FT 775 FT · LG - GOLDSTAR LCD 774 FT · LG - GOLDSTAR MONITOR · LG - GOLDSTAR MONITOR FLATRON
