HR 46228

type SM · family 1WD · 26.3 kV maximum anode voltage · L° deflection · 3 windings · 444 g

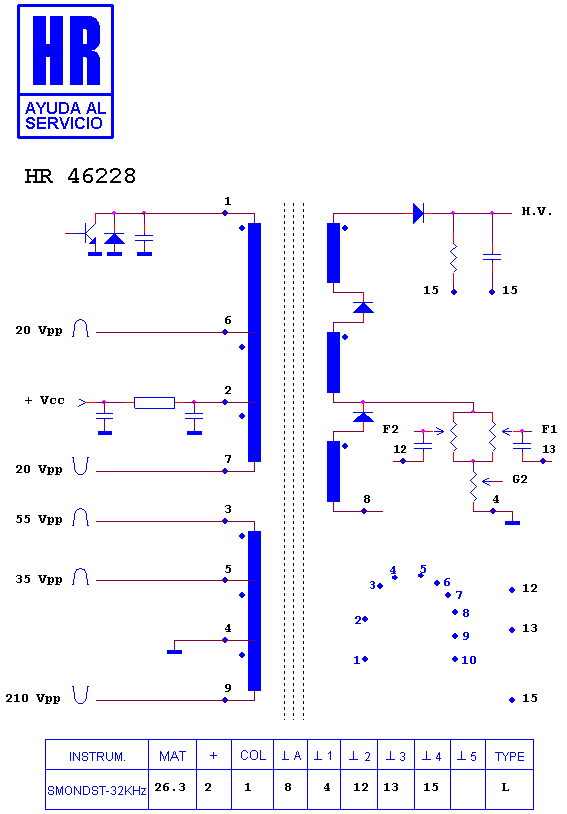

Schematic diagram for HR 46228
schematic (archived)

Manufacturer equivalents (1)

19-70048-001

Fitted to (3)

ACER 7278 C · ACER 78 C · ACER MONITOR

Search this part in the full database
